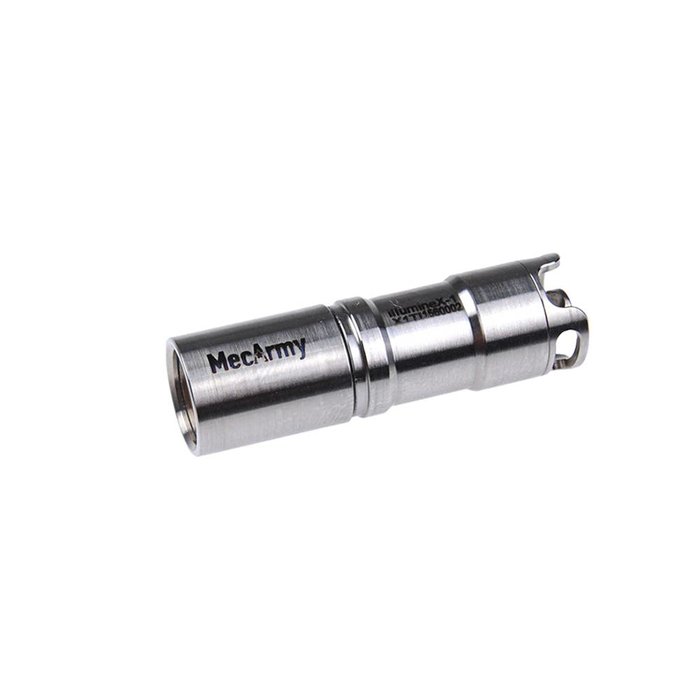

MecArmy illumineX-1 130 Lumen

illumineX User Manual

The World’s Smallest USB Rechargeable Flashlight

Primary Features

• Utilizes a CREE XP-G2 LED
• Maximum output of 130 ANSI lumens
• Patented rechargeable super micro-sized flashlight
• Rechargeable with any USB port device
• Quick charge in 1 hour
• Uses a rechargeable 10180 lithium ion battery

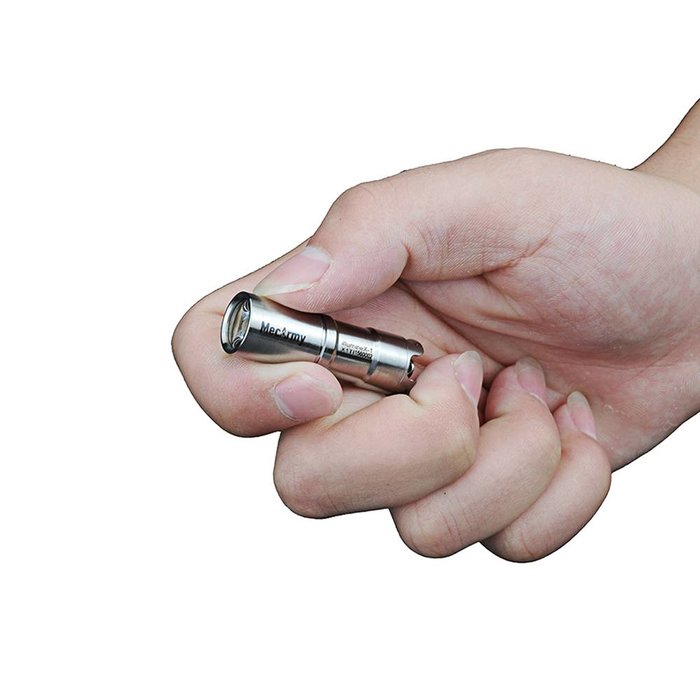

• Small and exquisite
• Reliable twist switch for quick, one-handed operation
• Battery reverse polarity protection
• Instant access to low/high mode;
• Waterproof to IPX-8 Standard (underwater to 2 meters)
• Impact resistant up to 1.5 meters

Specification

• CREE XP-G2 LED with a lifespan of up to 50,000 hours
• Lighting modes: High/ Low

• Working voltage: 3.0~4.2V

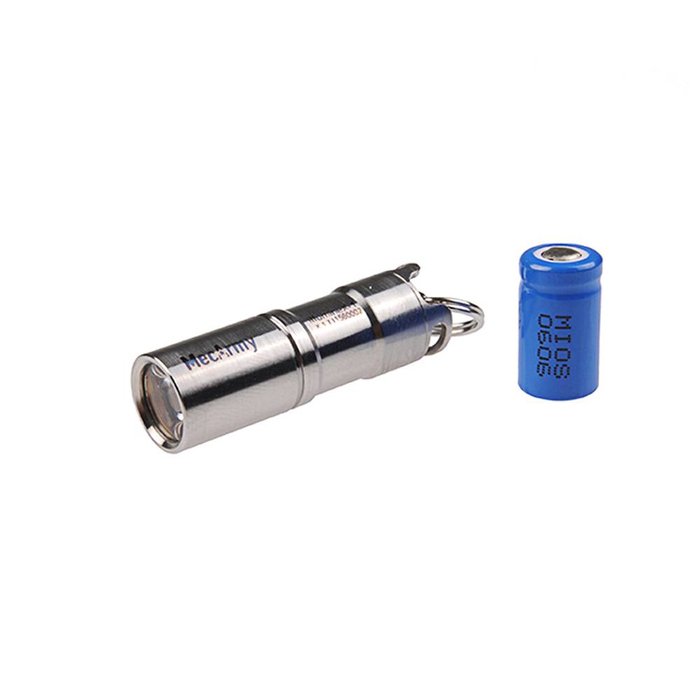

• Battery: 1 x 10180 lithium ion Battery
• Lens: Toughened ultra-clear glass

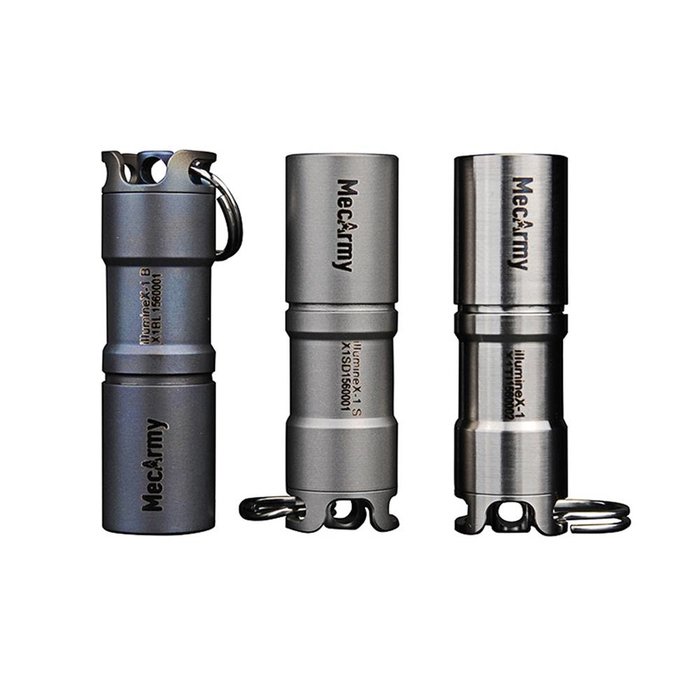

• Dimensions:

Titanium: Length 41mm (1.614") x Head 12.8mm (0.503")

Stainless Steel: Length 43.5mm (1.713") x Head 12.8mm (0.503")

Brass: Length 43.3mm (1.705") x Head 12.8mm (0.503")

Copper: Length 43mm (1.693") x Head 12.8mm (0.503")

Aluminum: Length 43mm (1.693") x Head 12.8mm (0.503")

• Weight (Excluding battery):

Titanium: 8.9g (0.31oz)

Stainless Steel: 14.1g (0.49oz)

Brass: 19.9g (0.7oz)

Copper: 20.7g (0.73oz)

Aluminum: 10.8g (0.38oz)

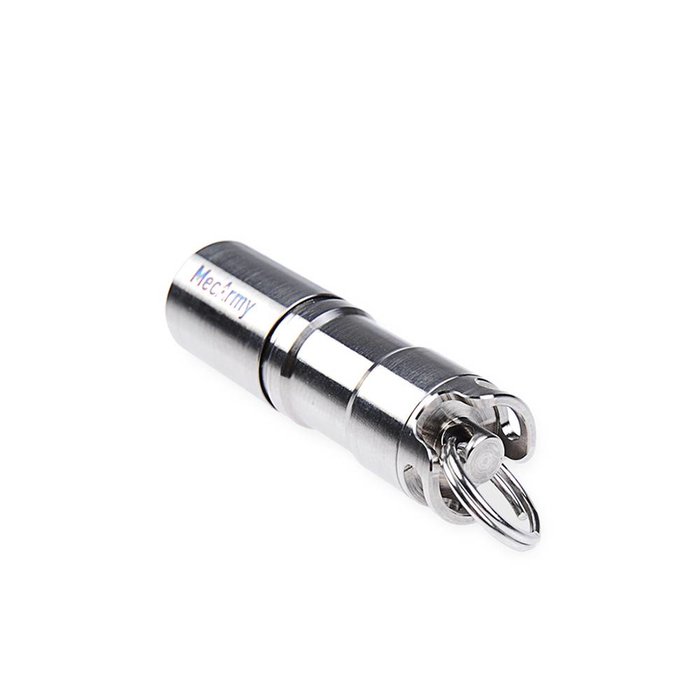

• Accessory: User manual, O-ring, Stainless steel key ring, Beaded chain

NOTICE: The above-mentioned parameters are approximate and may vary between flashlights, batteries and environments.

Operation

ON/ OFF: Tighten head to turn on flashlight, loosen head to turn off flashlight

While ON: Lightly tighten head for Low mode, Fully tighten head for High mode

Charging

Properly unscrew and remove the light’s head, and connect a mini USB charging cable as shown in the diagram below

Charging Indicator

When charging, the indicator light turns red, when charging is complete, the indicator light turns green

No indicator light indicates that there is no load

Charging time

1 hour (charging current 100mA/4.2V)

Battery replacement

Unscrew and remove the tail of the flashlight and insert the battery with positive side toward the light’s head, screw the tail back on to operate the light.

WARNING:

• Do not point the light at human or animal eyes
• Do not look directly into the light when it is switched on
• Do not permit children to use the flashlight unsupervised

Maintenance

• Remove battery when stored for extended periods
• Replace and lubricate O-Rings as needed to maintain IPX-8 rating
• Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant
