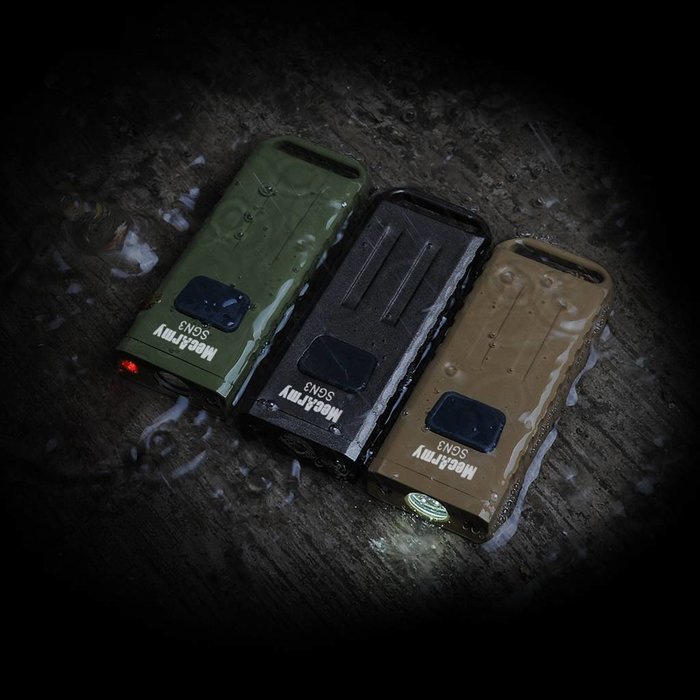

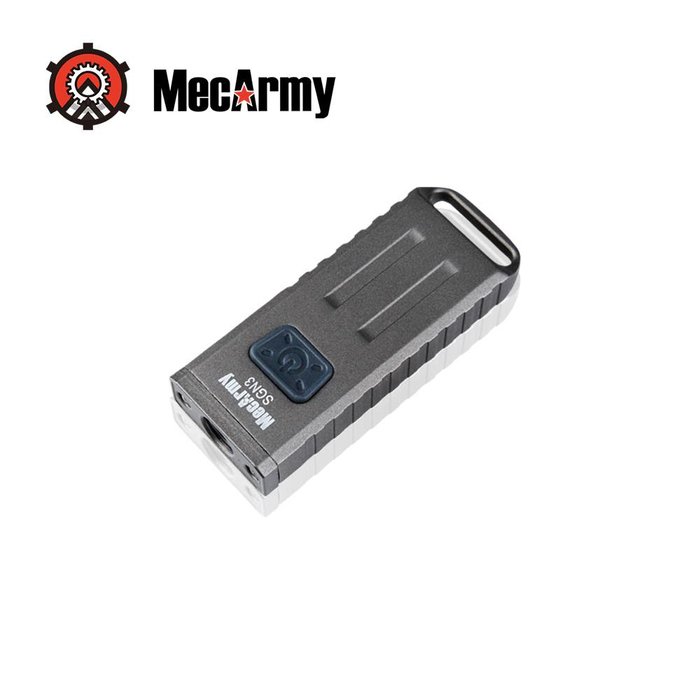

MecArmy SGN3 160 Lumen

SGN3 User Manual

Mini USB Rechargeable Multifunction Flashlight

Primary Features

• Patented product for utility and design
• USB rechargeable multifunction flashlight

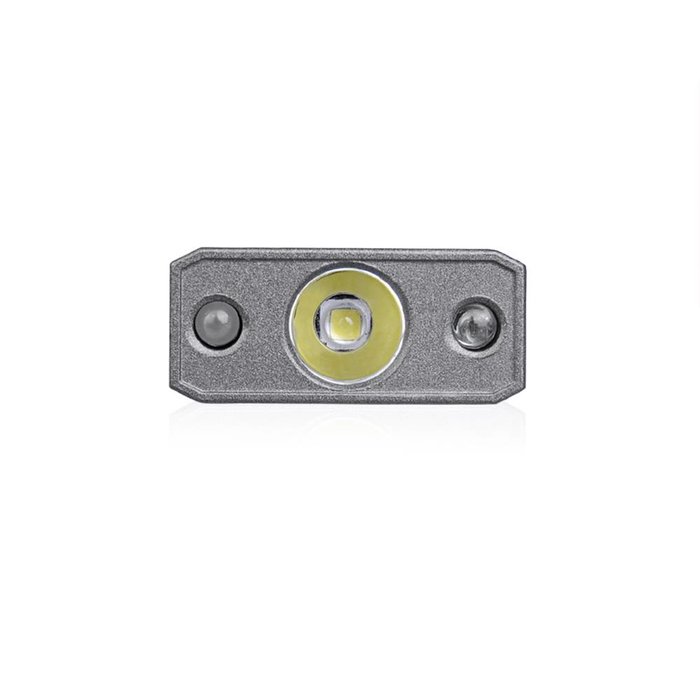

• Special design uses 3 LEDs, CREE XP-G2 as the primary LED, Φ3mm for the side LEDs

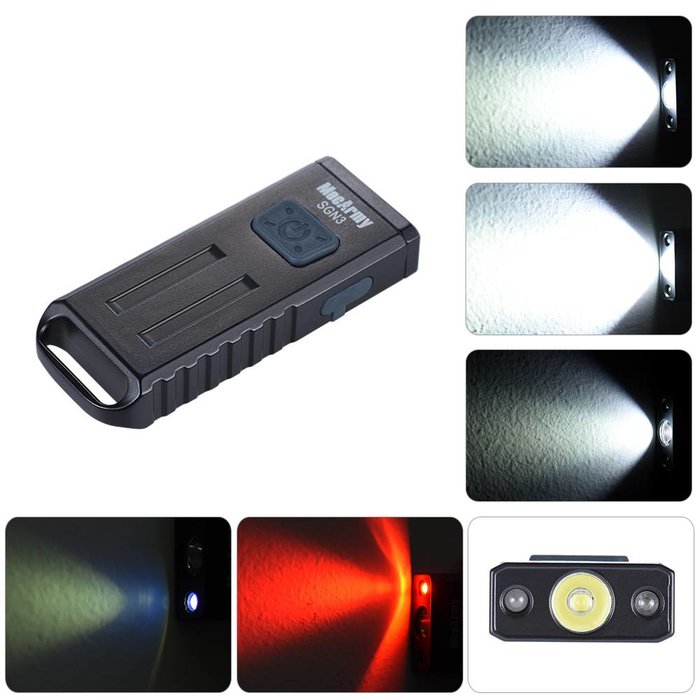

• Three selectable special modes (White/ Red/ UV)
• Three primary LED modes, max output up to 160 ANSI lumens
• Instant access to different lighting functions

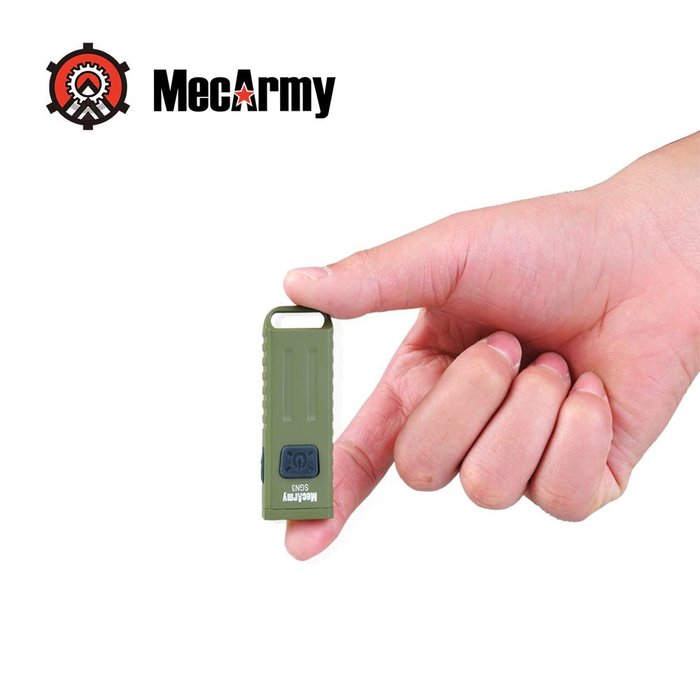

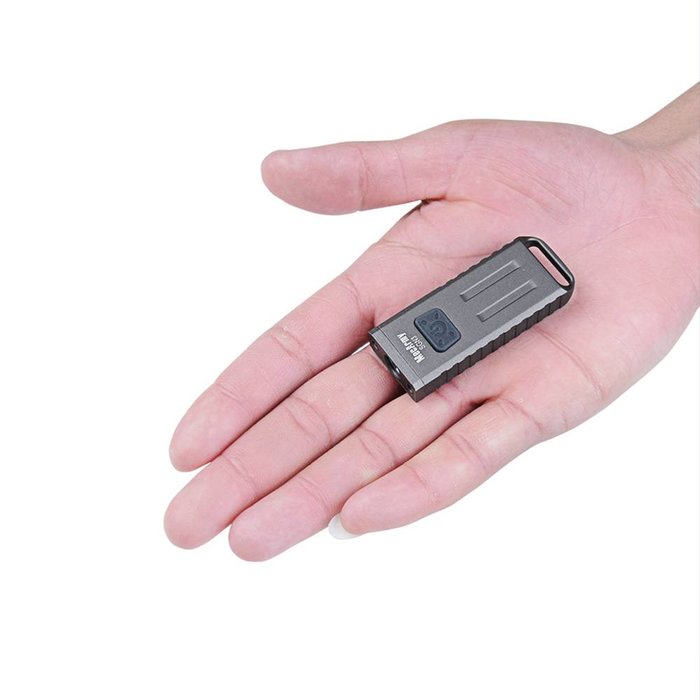

• Small and powerful, designed for everyday carry
• Uses rechargeable 280mAh lithium polymer battery
• Quick charge in just 90 minutes
• Standard Micro USB charging port, charges on any USB port
• Charging and fully charged indicators
• High quality die cast alloy shell built for endurance
• Specially designed tail allows the light to be hung on a chain

Specification

LED: CREE XP-G2 as the primary LED, Φ3mm for the side LEDs

Output & Runtime:

• Dimensions：L59mm/2.32in ×W23mm/0.91in ×H10mm/0.39in
• Weight：30g/1.06oz
• Working voltage: 3.0V-4.2V
• Battery：Rechargeable 280mAh lithium polymer battery
• Charging time: 1.5 hours (charging current 100mAh/4.2V)
• Accessories: User manual, Lanyard

NOTICE: The above-mentioned parameters are approximate and may vary between flashlights, batteries and environments.

Operation

• From OFF: Lightly depress for ON
• From ANY mode: Depress and hold switch to cycle through to MODES (White- Red- UV), release to stay in that mode

The light will return to White mode when next turned on

• White: Lightly depress switch to change brightness (Med/Low/High/OFF)

       When kept on in White mode at any brightness for longer than 5 seconds,                lightly depress switch to turn OFF

• Red: Lightly depress switch to ON/OFF/Flash
• UV: Lightly depress switch to ON/OFF

NOTICE: When the battery is low, the UV light may not work. Please recharge the battery.

Charging

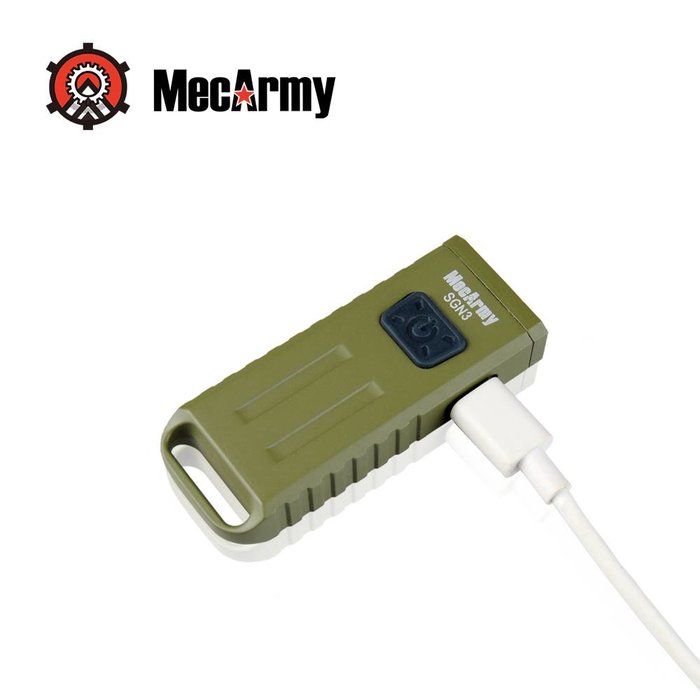

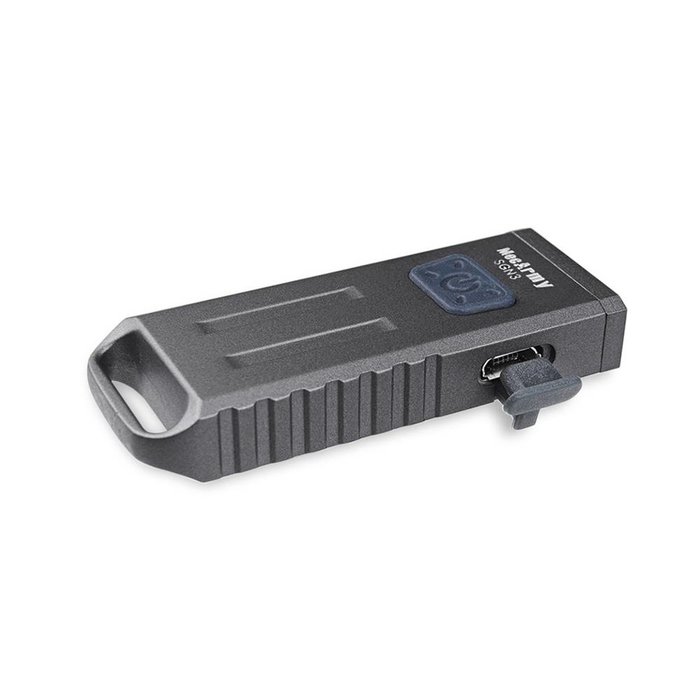

Carefully open and remove the USB charge port silicon gel cap, and connect a mini USB charging cable.

Charging Indicator

When charging, the light turns red, when charging is complete, the light turns green

No light indicates that there is no load

WARNING:

• Do not point the light at human or animal eyes
• Do not look directly into UV light
• Do not permit children to use the flashlight unsupervised
• Take care to limit exposure to UV light (including the use of UV-blocking eye protection)
